BalerTypes

Overview

Vertical Balers
Designed for small volumes and limited budgets, vertical balers are manually fed and are a good solution for two bales per day or less. Common materials include corrugated, plastic wrap and textiles. Multiple options are available, depending on types of materials to be processed.

Horizontal Balers
Horizontal balers are designed for continuous use. They can be set up for manual or automatic feeding. They offer significant labor savings over a vertical type baler. A wider range of materials can be processed, including large corrugated, plastic containers, cans and textiles.

Single Ram Closed Door Balers
Single ram closed door balers are designed to bale a wide variety of materials but are used most often to bale large corrugated boxes and paper trim. Ideal for distribution centers, document destruction facilities and printers/converters. You can optimize efficiency with an automated feeding by conveyor, cart dumper or trim system. Requires hand tying of bales.

Multi-Material Closed Door Balers
Process a wide variety of materials. Ideal for medium volume recycling centers. Full ram travel into the bale chamber enables baling of corrugated, plastics, paper, cans, textiles and non-ferrous scrap.

Single Ram Auto Tie Balers
Single ram auto tie balers are best suited for baling high volumes of corrugated and paper. A wide variety of models are available for recycling centers, printing plants, box manufacturing, document destruction and distribution centers.

Two Ram Auto Tie Balers
Automatic tie balers ideal for facilities that process a wide range of material. Two ram balers produce high-density bales of corrugated, paper, plastics, cans, non-ferrous scrap and solid waste. Ideal for material recovery facilities, recycling, scrapyards and landfills.

Key Buying Steps

1
ID Material and Volume
What are the types of material you plan to bale? What is the volume in terms of tonnage? Material and volume drive the size and type of equipment to consider.
What is the volume that you expect the baler to handle? Per year, per month, per day and per hour. Throughput is one of the most important factors in the decision process.
2
Determine Baler Specs
Consider labor costs, wire costs per bale, maintenance, spare parts availability, lease vs. buy and budget.
3
Compare Options
After completing your homework, determining your needs, amounts to be baled, bale density desired, future volume predictions and budget, you should be ready to compare and decide.
4
Contact Apex Equipment
We prefer to work with you from the start. That said, we'll plug into your buying process where it makes the most sense. We want you what is best for you. Just give a call and get started today.

Excel Manufacturing EX62 EX63

The EXCEL® EX62 & EX63 are designed to bale cardboard, paper, aluminum cans, tin cans, newspaper, PET, HDPE, and other recyclables. These machines produce the best mill-sized bales in the industry without preconditioning. EXCEL® Manufacturing uses only the highest quality components available for ultimate performance and reliability.

Full penetration design enables baling of a wide range of materials.  These include corrugated, plastics, cans, various paper grades, and textiles.

Features

The EXCEL® Model EX62/63 bales the following materials:
Office Paper, Newspaper, OCC, Magazines, PET, HDPE, Aluminum Cans, Tin Cans, Plastic Film,
Carpet Padding, Textiles, and Other Materials.
Standard Features Include
• Hydraulic Door Latch (EX63 only)
• Regenerative Circuit (EX63 only) Reduces cycle time by 17 seconds
• The EX62 is manufactured standard with either left-hand or right-hand door swing.
• 20HP TEFC Motor, Standard Voltage - 208, 230, 460 Volt, 60 Hertz, 3 Phase
• Horsepower Limited Pressure Compensated Piston Pump
• Removable Shear Blade with Four Cutting Edges
• Six Fully Guided Wire Tie Slots
• Automatic Bale Sizing System
• Automatic Shear Jam Correction
• Short Stroke Feature to Reduce Cycle Time
• EXCEL’s® 1-2-3 Warranty
(1 Year Labor, 2 Year Parts, and 3 Years Structural and Cylinder) (U.S.A Only)
• Complete with MV32 Hydraulic Oil
• NEMA 12 rated Enclosures and Controls
• Remote Controls - According to Door Swing
• Safety Interlock Door with Decompression
• Clean Out Tool, Grease Gun, and Extra Touch Up Paint
• One Bundle of 12 x 13 Single Loop Wire Ties
• Sandblasted, Primed, and Painted Excel Blue for Long Lasting Durability
• Standard Hopper
• Lower Photo Eye
• UL, CUL Approved (CE Available)
• PLC Controlled Operation
• Available with an EXCEL® above ground or in-ground conveyor for a turn-key system

Bale Weights:

Corrugated:    1,200 lbs. (544kg) TPH 3.3
Magazines:     2,000 lbs. (907kg) TPH 7.5
Newspaper     1,500 lbs. (680kg) TPH 6.4
Office paper   1,600 lbs. (726kg) TPH 6.8
HDPE             1,100 lbs. (499kg) TPH 2.3
PET                1,000 lbs. (454kg) TPH 1.8
UBC               625 lbs. (284kg) TPH 2.3
Tin cans         1,200 lbs. (544kg) TPH 4.5

Applications
  • Recycling Centers
  • Manufacturing and Industrial
  • Distribution Centers

IBC Titan-60-XHD-10

Extra heavy duty multi-material model capable of baling all recyclables plus non-ferrous scrap.  Processes siding, extrusions, insulated wire, radiators and more.

PERFORMANCE
  • Bale Size 30 x 45 x 60
  • Bale Volume 47 Cubic Feet Expanded (Approximate)
  • Cycle Time 20 Seconds
  • Short Stroke 14 Seconds
  • Production Capacity 4,770/14,991 Cubic Feet
MATERIALS PROCESSED
  • Aluminum siding
  • Radiators
  • Extrustion
  • Aluminum cans
  • Insulated copper wire
  • Corrugated
  • Plastics
  • Paper

Features

MACHINE DIMENSIONS

  • Length 244”
  • Conveyor and Open Door N/A”
  • Width 88”
  • Height 90”
  • Hopper Size (L x W) 57 x 45
  • Shipping Weight 32,500 Lbs.

STRUCTURAL

  • Main Frame Welded Frame of Heavily
  • Reinforced plate
  • Floor Structure AR 400 Liner Plates, Cellular
  • Design
  • Shear Blade Replaceable T-1 Alloy Steel
  • Hoppers Steel Plate Fabrication with
  • Access Door

ELECTRICAL

  • Main Motor 50 HP/1,800 RPM/460 Volt/3
  • Phase/TEFC/High Efficiency
  • Main Enclosure NEMA 12 Rated
  • Operators Controls Programmable Controller
  • Control Circuit 120 volts
  • Cooler Fan 1 HP/460 Volt
  • Control Switches Proximity Switches
  • Photocell Infrared Type

HYDRAULIC

  • JIC Standard Hydraulics
  • Main Pumps 79 GPM Total Flow
  • Maximum System Pressure 3,000 PSI
  • Main Cylinder 10” Bore, 94” Stroke, 7” Rod
  • Door Cylinder 5" Bore, 10" Stroke 3" Rod
  • Total Force 235,620 Lbs.
  • Platen Pressure 134 PSI
  • Oil Reservoir Capacity 210 Gallons

STANDARD FEATURES

  • Programmable Controller
  • UL Listed Control Panel

OPTIONS

  • Oil Heater
  • Baling Wire
  • Hydraulic Oil
  • Special Electric Voltages available at surcharge.
Applications
  • Scrap Yards
  • Recycling Centers

G-Baler Single Ram Auto Tie Balers

G-Baler AT series of balers. Maufactured with quality in mind, using the best steel, hydraulic, and electrical components availiable in the industry. With over 4,000 installations worldwide, G-BALER is truly the industry leader now and in the future.
A unique ram roller system dramatically reduces machine wear and maintenance.
Applications
  • Manufacturing and Industrial
  • Recycling Centers
  • Distribution Centers
  • Document Destruction

IBC Auto Tie Balers

International Baler Corporation has one of the most diverse lines of Auto-Tie Balers in the industry. IBC offers customers many configuration and options to choose from. They do this to meet the constantly changing and growing needs of our customers. IBC’s Auto-Tie Series offer both high speed and reduced operating cost. They eliminate the additional time and cost of having to manually tie-off and remove finished bales from the baler.

IBC has been manufacturing balers for over 60 years.

Features

• Heavy duty welded construction
• Solid Plate Sidewalls
• Keyed interlocking design
• T8 & T10 Regen Hydraulic System
• Integrated disconnect providing for lock-out/tag-out procedures
• Adjustable Striker
• Spring-loaded retractable bale retainer dogs
• Fully Automatic Baling
• Multi-material capabilities
• PLC equipped electrical panel UL Listed
• Easy to operate controls
• Adjustable photo cell control
• Meets or exceeds all current ANSI Z 245.5 Safety Standards

Applications
  • Recycling Centers
  • Distribution Centers
  • Manufacturing and Industrial
  • Document Destruction

Excel EX63 Multi-Material Closed Door/Manual Tie--USED

Bales corrugated, plastics, paper, cans, and textiles – 20 HP motor, 54” x 35” feed opening.  Serviced and guaranteed good working order:

Features

The EXCEL® Model EX62/63 bales the following materials:
Office Paper, Newspaper, OCC, Magazines, PET, HDPE, Aluminum Cans, Tin Cans, Plastic Film,
Carpet Padding, Textiles, and Other Materials.
Standard Features Include
• Hydraulic Door Latch (EX63 only)
• Regenerative Circuit (EX63 only) Reduces cycle time by 17 seconds
• The EX62 is manufactured standard with either left-hand or right-hand door swing.
• 20HP TEFC Motor, Standard Voltage - 208, 230, 460 Volt, 60 Hertz, 3 Phase
• Horsepower Limited Pressure Compensated Piston Pump
• Removable Shear Blade with Four Cutting Edges
• Six Fully Guided Wire Tie Slots
• Automatic Bale Sizing System
• Automatic Shear Jam Correction
• Short Stroke Feature to Reduce Cycle Time
• EXCEL’s® 1-2-3 Warranty
(1 Year Labor, 2 Year Parts, and 3 Years Structural and Cylinder) (U.S.A Only)
• Complete with MV32 Hydraulic Oil
• NEMA 12 rated Enclosures and Controls
• Remote Controls - According to Door Swing
• Safety Interlock Door with Decompression
• Clean Out Tool, Grease Gun, and Extra Touch Up Paint
• One Bundle of 12 x 13 Single Loop Wire Ties
• Sandblasted, Primed, and Painted Excel Blue for Long Lasting Durability
• Standard Hopper
• Lower Photo Eye
• UL, CUL Approved (CE Available)
• PLC Controlled Operation
• Available with an EXCEL® above ground or in-ground conveyor for a turn-key system

Applications
  • Recycling Centers
  • Manufacturing and Industrial
  • Distribution Centers

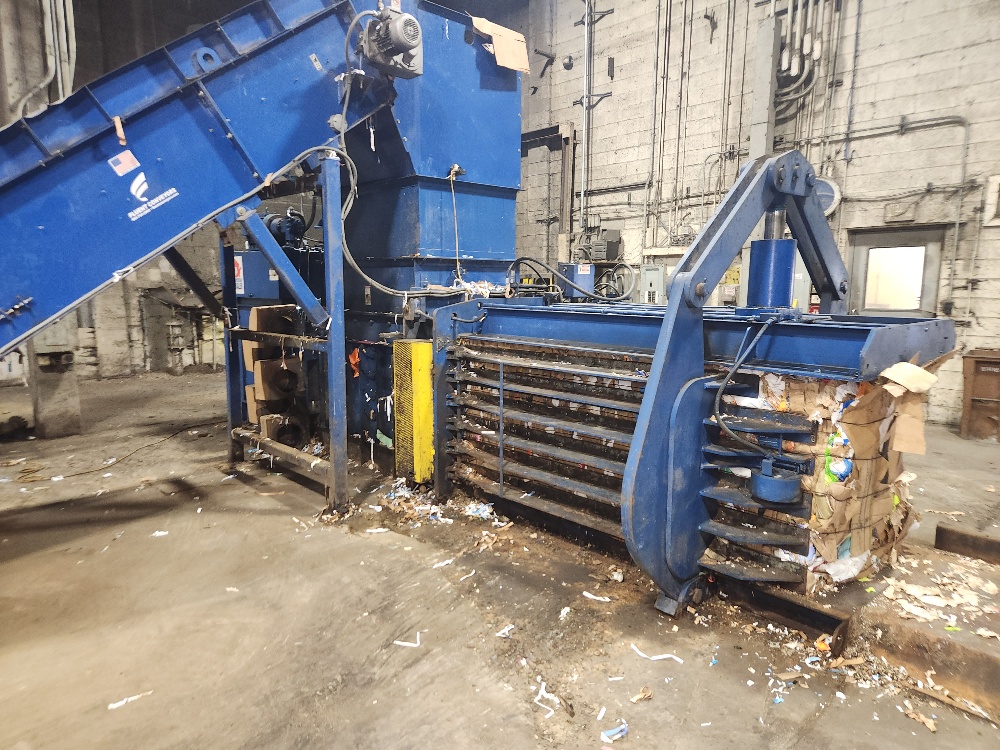

Excel 2R63 Two Ram Baler with Automatic Wire Tie --USED

Excel Model 2R63 Two Ram Automatic Tie Baler - Completely rebuilt and in like new condition!  Small footprint ideal for facilities with limited floor space.  Bales corrugated, plastics, paper, cans, and textiles – 20 HP motor, 54” x 40” feed opening, up to 3.5 tons/hour corrugated, 6 tons/hour paper.



Applications
  • Recycling Centers
  • Distribution Centers
  • Manufacturing and Industrial

Excel Model 4823 Baler Feed Conveyor--USED

48” wide cleated belt, 8’ discharge height, pit hopper and plates.  Feeds Excel EX62, EX63, and 2R63 balers.

Applications
  • Manufacturing and Industrial
  • Scrap Yards
  • Recycling Centers
  • Distribution Centers
  • Document Destruction

Economy Model 6036 OSH Closed Door/Manual Tie Baler--USED

Bales corrugated and shredded paper.  20 HP motor, 50 x 28” feed opening.  Serviced and guaranteed good working order.

Applications
  • Manufacturing and Industrial
  • Super Markets/Retail Centers
  • Distribution Centers
  • Recycling Centers
  • Document Destruction

C&M Closed Door Horizontal Baler--USED

C&M Closed Door Horizontal Baler - 30 HP, 8" cylinder, huge 60" x 45" feed opening.  A great machine for large corrugated.  Completely rebuilt:  $29,000

Applications
  • Manufacturing and Industrial
  • Recycling Centers
  • Distribution Centers
  • Document Destruction

Balemaster Open-End Manual Tie Baler--USED

Balemaster Closed Door Baler - 25 HP, 8” cylinder.  Huge 60” x 45” feed opening is great for large corrugated.  In very good condition.  $14,500

Applications
  • Manufacturing and Industrial
  • Recycling Centers
  • Distribution Centers
  • Document Destruction

PTR Model 3400HD Vertical Baler--USED

Extra Heavy Duty Model.  10 HP, 6” cylinder, 60” x 30” x 48” bale size.  Bales corrugated and stretch wrap.  Serviced and guaranteed good working order.  $6,200

Applications
  • Manufacturing and Industrial
  • Super Markets/Retail Centers
  • Recycling Centers
  • Scrap Yards
  • Distribution Centers
  • Document Destruction

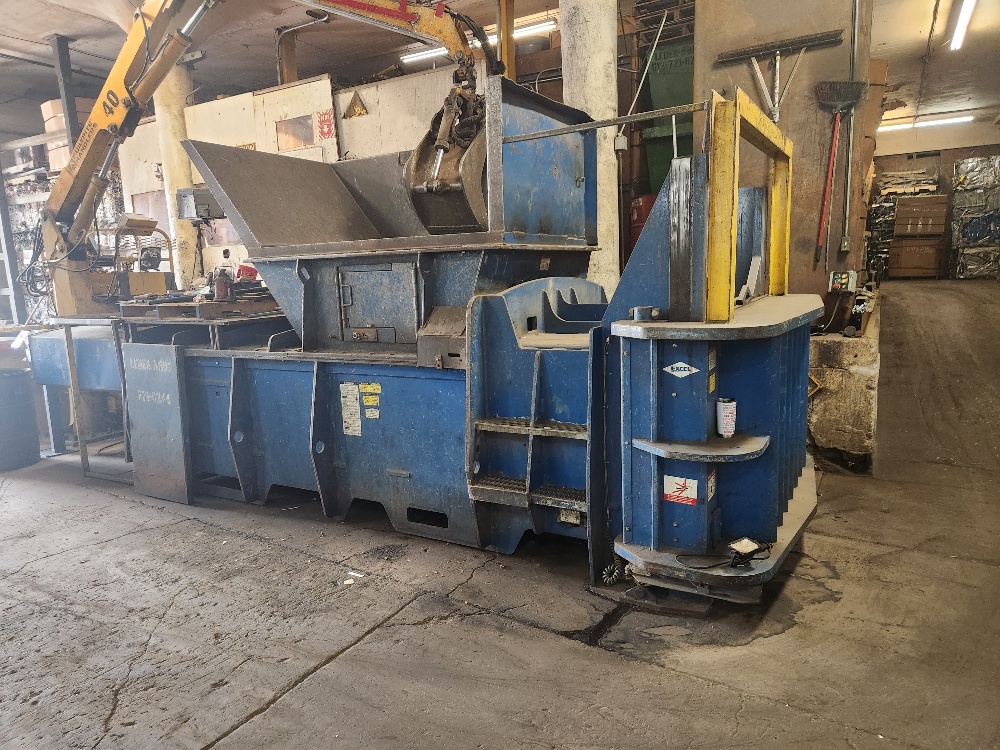

Max Pak HCE-60-FE-9 Scrap Metal Baler - Used

This extra heavy duty closed door baler (30,000# frame) is designed to bale a wide range of scrap metal and other recyclables.  50 HP, 9" main cylinder - Processes aluminum siding, extrusions, radiators, cans, and more!

Applications
  • Scrap Yards
  • Recycling Centers

IBC Two Ram Balers

IBC offeres a full line of two ram balers with multiple options to choose from, depending on your buget and production needs.  An exclusive removable end wall feature allows for ease of maintenance for rebuild of the floor or platen.

Applications
  • Recycling Centers
  • Scrap Yards

Single Ram Closed Door Balers

Single ram closed door balers are available in extra large feed openings that make them excellent choices for the largest corrugated cardboard.  2,000# bales weights minimize labor costs over smaller horizontal balers.  Small feed opening models provide an economical option for baling shredded paper and trim waste.

Applications
  • Manufacturing and Industrial
  • Distribution Centers
  • Recycling Centers
  • Document Destruction

Excel Model 2R63 Two Ram Baler

The 2R63 offers an fully automated baling solution for a wide range of materials at an affordable price.  It is the smallest two ram/automtic tie baler on the market, but has big capabilties.  Bales corrugated, paper, plastics, cans, and more.  A wide range of loading options including pit style or above ground belt feed or hydraulic tipper.

Applications
  • Recycling Centers
  • Manufacturing and Industrial
  • Distribution Centers

PTR Vertical Balers

PTR offers a wide range of vertical baler sizes and options.  These include standard and extra heavy duty model for corrugated, extra long cylinder stoke options for plastics, super duty models for scrap metals, and more.
